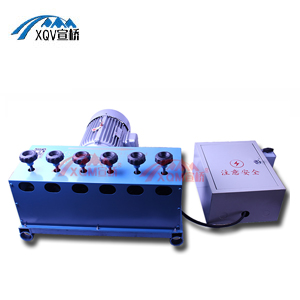

Electric Motor‑Driven Strand Pusher
High‑Efficiency Strand Pusher for Prestressed Duct Threading
| Model | Strand Diameter (mm) | Motor Power (kW) | Motor Speed (r/min) | Max. Pushing Length (m) – Curve | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|
| NS19‑3‑25A | φ15.24 | 3 | 1420 | 50 | 120 | 620×420×350 |
| NS19‑4‑25A | φ15.24 | 4 | 1420 | 80 | 150 | 620×500×350 |
| NS19‑5‑25A | φ15.24 | 5.5 | 1420 | 100 | 200 | 720×620×350 |
| NS19‑6‑25A | φ15.24 | 7.5 | 1420 | 150 | 300 | 720×950×350 |
| CS15‑3 | φ15.24 | 4 | – | 140 | – | – |
| CS15‑4 | φ15.24 | 5.5/7.5/11 | – | 200 | – | – |
The CS / NS series electric strand pusher is designed for fast and reliable threading of prestressed steel strands through ducts in bridge, high‑rise building, and viaduct construction. The machine uses mechanical transmission and roller clamping, allowing forward, reverse, continuous or jogging operation. With a frequency conversion control system, the pushing speed is adjustable from 1 to 80 m/min, enabling either low‑speed high‑torque or high‑speed high‑throughput operation.
Both CS15‑4 and NS19‑6‑25A can achieve a curved pushing length up to 200 m, covering all types of bridge components (cast‑in‑place, prefabricated, suspended scaffolding, cable‑stayed, arch, etc.). The patented double‑pushing‑channel design and large‑diameter wear‑resistant pressure roller system ensure accessory life three times longer than comparable products, preventing construction delays.
Workshop
Our Manufacturing Base – Liuzhou Xuanqiao Prestressed Machinery Co., Ltd.</p >
Located in Liuzhou, Guangxi – a key industrial hub for prestressed technology – our modern workshop covers over 10,000㎡. We operate CNC machining centers, automated assembly lines, and precision testing equipment to ensure consistent quality.</p >
Every batch of raw material is inspected, and finished products (anchors, jacks, pumps, ducts) are tested in our in‑house laboratory for mechanical performance and pressure resistance. We are certified under ISO 9001:2015 and comply with FIP international standards.</p >
Annual capacity: 6 million anchor holes and 1,000+ sets of hydraulic equipment. Our experienced technicians and engineers follow strict SOPs to guarantee reliability.</p >
We maintain sufficient raw material inventory and finished goods for fast delivery. Continuous investment in equipment and training keeps us at the forefront of prestressed manufacturing – because a strong factory means reliable products and long‑term trust.</p >
