XQV YJM15L Multi‑Holes Connector – Multi‑Strand Coupler for Post‑Tensioning Systems

The XQV YJM15L multi‑holes connector is a multi‑strand coupler designed for splicing groups of prestressing tendons in post‑tensioned concrete structures. It consists of an anchor head, connecting body and multiple wedges, providing reliable mechanical anchoring for several strands simultaneously. The connector ensures uniform force distribution, high anchorage efficiency (ηa ≥ 95%), and is compatible with φ15.2 mm low‑relaxation steel strands. It fully complies with GB/T14370‑2015, JT/T329‑2010, TB/T3193, ISO, CE, ASTM, BS and other international standards.

• Bridge Engineering:
  • Long‑span bridges (cable‑stayed, suspension): Continuous tensioning of prestressing tendons in main girders, pylons and piers; segmental casting or precast segment assembly – ensures uniform stress and overall stiffness.
  • Strengthening & reconstruction: Old bridge reinforcement, widening, load upgrading – new tendons anchored via multi‑hole connectors to improve bearing capacity and extend service life.
• Building Engineering:
  • Large public buildings (stadiums, airport terminals): Anchor multiple tendons in long‑span roofs, beams, columns – reduces cross‑section size and optimises force distribution.
  • High‑rise transfer floors (thick slabs / open‑web trusses): Enhances crack resistance and load transfer between upper and lower structural systems.
• Water Conservancy & Hydropower Engineering:
  • Dams, spillways, sluice floors and piers: Anchors multi‑directional tendons to resist water pressure and temperature stress – improves impermeability and sliding stability.

※ Parameters for reference only. Custom configurations available. Final interpretation right belongs to our company.

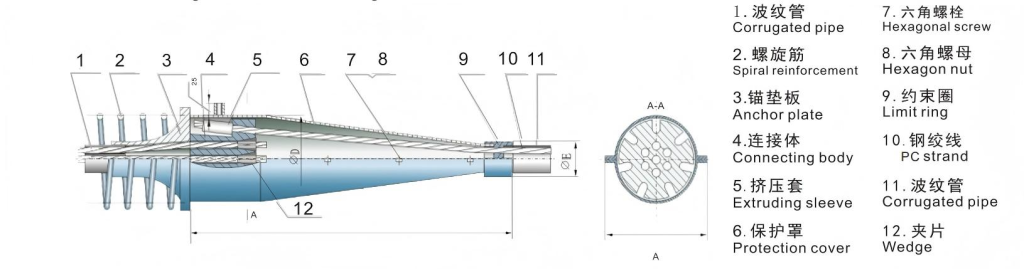

Fig.1 – YJM15L Multi‑Holes Connector Structural Diagram
