XQV YJM15L Single Hole Connector – Prestressed Strand Coupler for Post‑Tensioning
High‑Strength Mechanical Splice for Reliable Force Transfer Between Strands
The XQV single‑hole connector achieves reliable splicing of prestressing steel strands through a mechanical anchoring design consisting of an anchor head, a connecting sleeve and wedges. It features flexible construction, efficient force transmission, and strong compatibility (suitable for different strand diameters such as φ15.2 mm and φ12.7 mm). The connector is widely used in various prestressed engineering projects. In practical applications, the appropriate model can be selected according to project requirements to ensure the safety and durability of the prestressed system. The product fully complies with GB/T14370‑2015, JT/T329‑2010, TB/T3193, ISO, CE, ASTM, BS and other international standards.
🔗 Reliable Mechanical Anchoring
Anchor head + connecting sleeve + wedge system provides secure, slip‑resistant strand splicing.
🔄 High Anchorage Efficiency
ηa ≥ 95%, ensuring full force transfer between spliced strands.
⚙️ Wide Compatibility
Suitable for φ15.2 mm (0.6″) and φ12.7 mm (0.5″) low‑relaxation steel strands.
🏗️ Flexible Construction
Simple installation, ideal for segmental bridge construction and tendon extension.
🛡️ Durable Materials
40Cr anchor head and connecting sleeve, 20CrMnTi wedges – heat‑treated for long service life.
| Parameter | Value |
|---|---|
| Applicable strand diameter(s) | φ15.2 mm (0.6″) / φ12.7 mm (0.5″) – low relaxation |
| Anchorage efficiency coefficient (ηa) | ≥ 95% |
| Anchor head & sleeve material | 40Cr (high‑strength alloy steel) |
| Wedge material | 20CrMnTi (case‑hardened) |
| Surface treatment | Corrosion protection coating |
| Standards | GB/T14370‑2015, JT/T329‑2010, TB/T3193, ISO, CE, ASTM, BS |

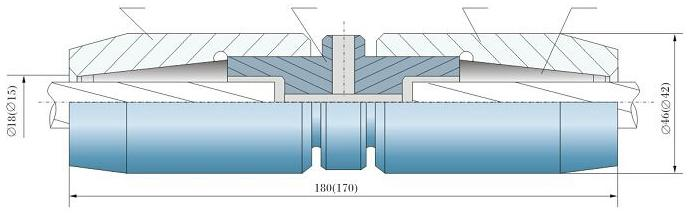

The connector consists of an anchor head, a connecting sleeve and matching wedges. When assembled, the wedges are driven into the tapered bore of the sleeve, gripping the strands tightly under tension. Detailed dimensional drawings are available upon request.
| Component | Material | Surface Treatment | Packaging | Standard |
|---|---|---|---|---|
| Anchor Head | 40Cr | Corrosion protection | Cardboard box or wooden case | GB/T14370‑2015, JT/T329‑2010, TB/T3193, ISO, CE, ASTM, BS |
| Connecting Sleeve | 40Cr | — | ||
| Wedge (Clip) | 20CrMnTi | Case‑hardened |
- Bridge Engineering: Splicing segmented prestressing tendons in segmental box girders; connecting cable strands in cable‑stayed and suspension bridges.
- Building Construction: Extending prestressing tendons in long‑span structures (stadiums, convention centers); connecting anchor cables in foundation reinforcement and excavation support.
- Special Engineering: Dam prestressing reinforcement in water conservancy projects; connecting new tendons with existing structures in retrofitting old bridges/buildings.
- Temporary Works: Temporary prestressing tensioning during bridge construction, traction and fixing of heavy equipment.
※ Parameters for reference only. Custom configurations available. Final interpretation right belongs to our company.
